Pilot high temperature solenoid valve

Pilot high temperature solenoid valve

B11HC Pilot high temperature solenoid valve

B11HC Pilot high temperature solenoid valve

B41DP pilot piston solenoid valve is widely used in military, aerospace, shipbuilding, nuclear industry, petrochemical, electric power, chemical, light industry, machinery, scientific research, industrial furnace, drying equipment, boiler, water supply and drainage, air conditioning, fire protection, food and medical, Cleaning equipment, pipeline media automation and other fields.

  • Quality
  • Price
  • Fast
Complete solenoid valve solution
Salse:+86-577-86989863 13456060066
Fax:+86-577-86920866
Service:+86-577-86926655 85857018
  • Summary
  • Model
  • Parameter

Application

B41DP pilot piston solenoid valve is widely used in military, aerospace, shipbuilding, nuclear industry, petrochemical, electric power, chemical, light industry, machinery, scientific research, industrial furnace, drying equipment, boiler, water supply and drainage, air conditioning, fire protection, food and medical, Cleaning equipment, pipeline media automation and other fields.

Features

Precision casting, beautiful appearance; pilot-type piston structure, stable performance; good sealing, fast switch; auto-made coil, not easy to burn;

Principle

Normally closed: When the coil is energized, the electromagnet core is sucked, the pressure relief hole is opened, the main piston is pushed by the medium pressure, the main valve port is opened, and the medium is circulated. When the coil is de-energized, the main valve port is closed and the medium is cut off.

Normally open: When the coil is energized, the electromagnet core is sucked, the pressure relief hole is closed, the main piston is pushed by the medium pressure, the main valve port is closed, and the medium is cut off. When the coil is de-energized, the main valve port opens and the medium circulates.

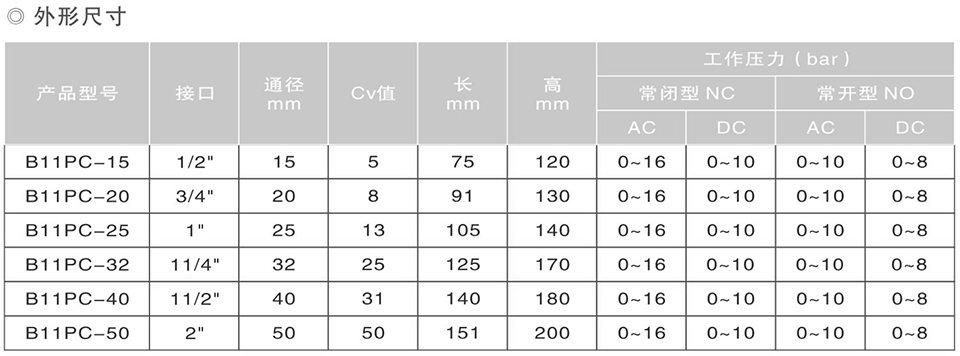

Parameter

Power supply voltage: DC12~220V; AC24~380V.

Body material: stainless steel, SS304, SS316, SS316L.

Pressure range: 0~6.4MPa

Temperature range: (-200, -50) ~ (+180, +250, +380) °C

Medium viscosity: less than 50CSt (more than custom).

Protective performance: dustproof, waterproof and explosion-proof. Choose according to working conditions

Wiring method: terminal block type, lead type, plug type.

Connection method: flange, welding, internal thread (external thread and special interface can be customized or twisted).
